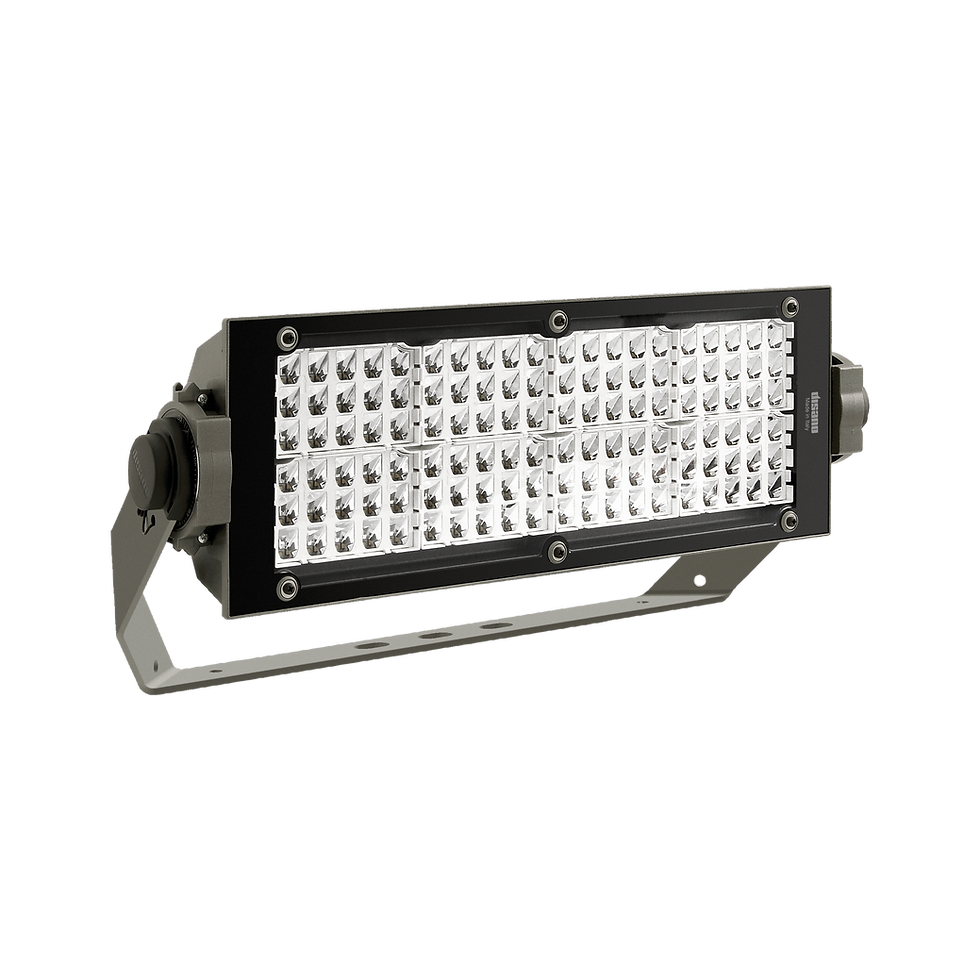

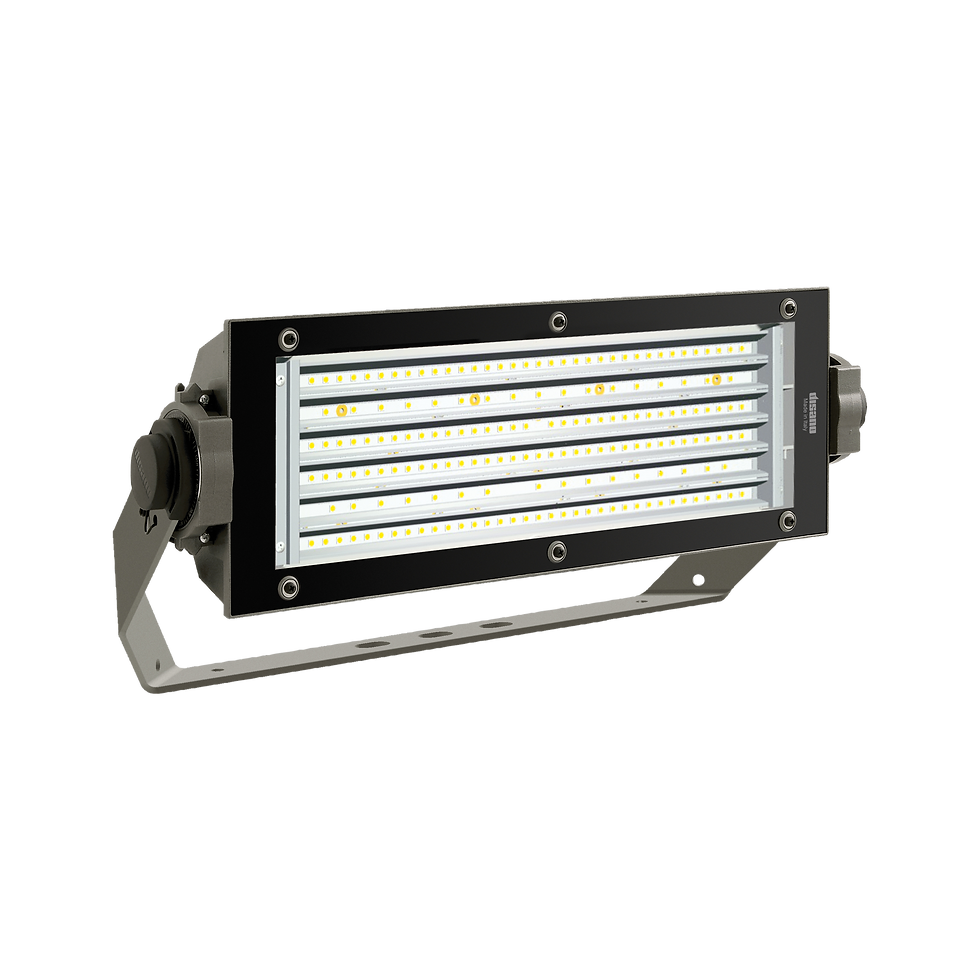

Forum 1 Module

Forum 1 Module

Forum 2188 High Efficiency Symmetric


Product Code Lumen Output CCT Wattage Efficacy
36741269000 51427 740 368W 139.7lm/w


Forum 2189 High Efficiency Asymmetric


Product Code Lumen Output CCT Wattage Efficacy
36741269500 50842 740 368W 138lm/w


Forum 2177 High Efficiency Asymmetric 50°


Product Code Lumen Output CCT Wattage Efficacy
36741269800 57680 740 368W 156.7lm/w


Forum 2184 Asymmetric 60° "AS"


Product Code Lumen Output CCT Wattage Efficacy
36741265300 37755 740 236W 160lm/w
36741265400 52480 740 363W 144.5lm/w
36741265500 58200 740 418W 139.2lm/w


Forum 2185 Asymmetric "AS"


Product Code Lumen Output CCT Wattage Efficacy
36741265000 29804 740 236W 126.3lm/w
36741265100 39606 740 363W 109.1lm/w
36741265200 43545 740 418W 104.2lm/w


Forum 2186 Narrow Beam "XS"


Product Code Lumen Output CCT Wattage Efficacy
36741266100 40427 740 397W 101.8lm/w
36741266200 44679 740 457W 97.8lm/w


Forum 2187 Narrow Beam "S"


Product Code Lumen Output CCT Wattage Efficacy
36741267100 37087 740 397W 93.4lm/w
36741267200 40987 740 457W 89.7lm/w


Forum 2180 Symmetric "MS"


Product Code Lumen Output CCT Wattage Efficacy
36741260000 32462 740 256W 126.8lm/w
36741260100 43391 740 397W 109.3lm/w
36741260200 47954 740 457W 104.9lm/w


Forum 2181 Symmetric "M"


Product Code Lumen Output CCT Wattage Efficacy
36741261000 27715 740 256W 108.3lm/w
36741261100 37047 740 397W 93.3lm/w
36741261200 40943 740 457W 89.6lm/w


Forum 2182 Symmetric "W"


Product Code Lumen Output CCT Wattage Efficacy
36741262000 30882 740 256W 120.6lm/w
36741262100 41279 740 397W 104lm/w
36741262200 45620 740 457W 99.8lm/w


Forum 2183 Symmetric "XW"


Product Code Lumen Output CCT Wattage Efficacy
36741263000 32350 740 256W 126.4lm/w
36741263100 43242 740 397W 109lm/w
36741263200 47789 740 457W 104.6lm/w
